Shay 213 Pics – May 2001

Logdate 5/16/2001

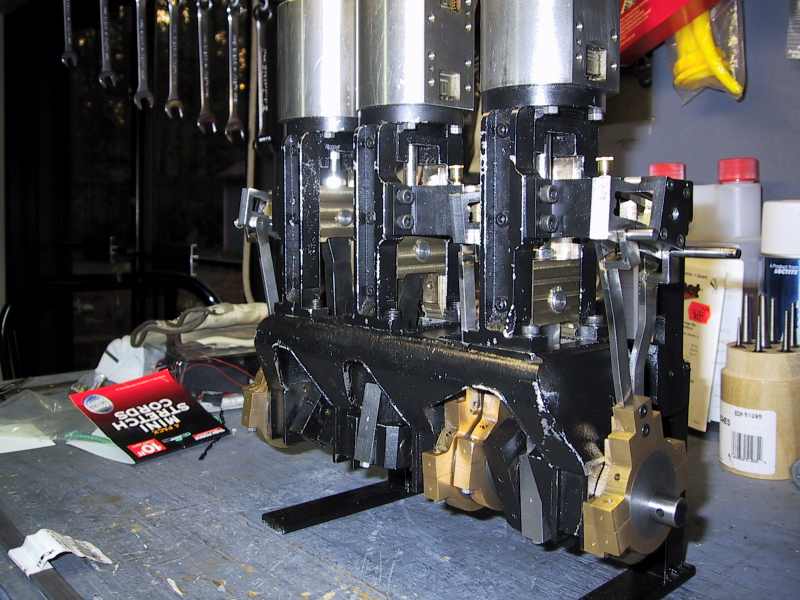

Work on the PC Shay is continuing although slowly at times. With that said, let me recap what has transpired since the last report and include a few pictures.

  • The valve crosshead guides have been completed and mounted.

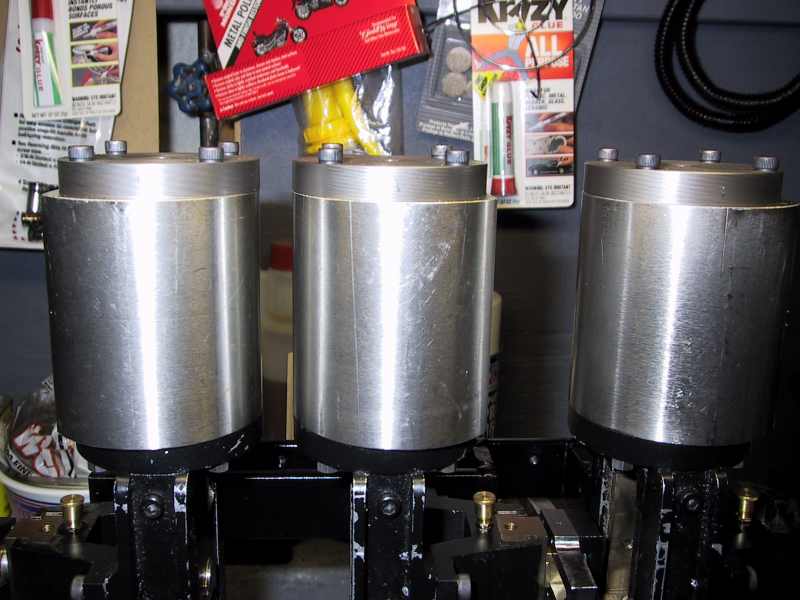

  • The three top cylinder heads have been fabricated, drilled, and mounted.

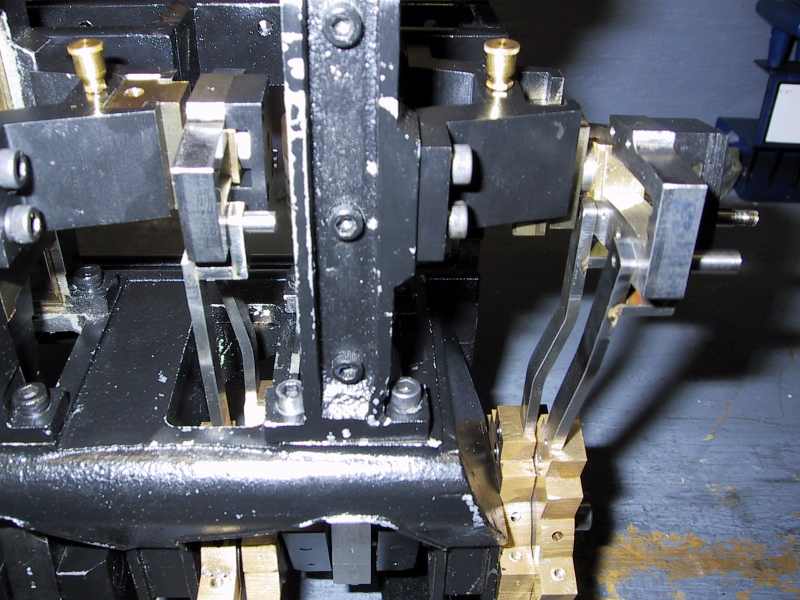

  • The reversing link assemblies have been completed.
  • The piston rod to piston connection dilemma has been resolved with the use of small jam nuts.
  • The valve eccentrics were completed with the final machining and drilling.
  • The link blades have been fabricated.

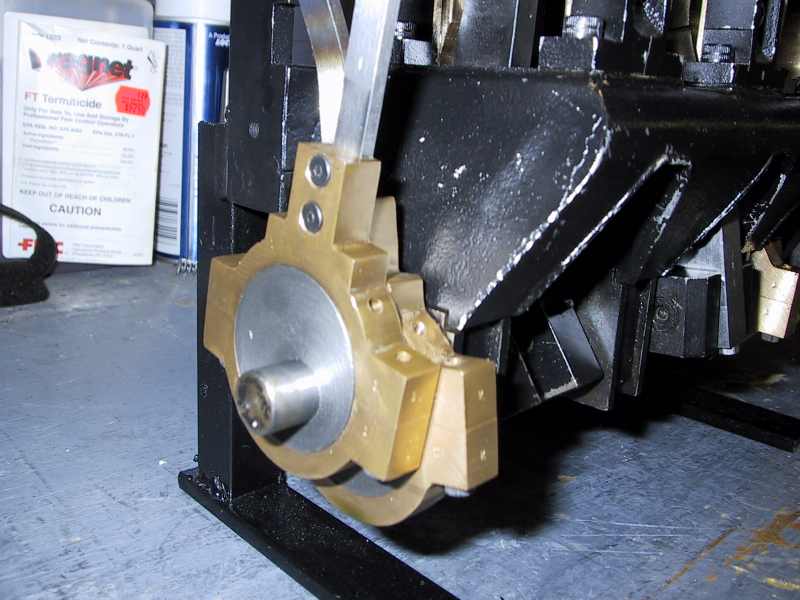

  • The valve eccentrics have been mounted on the crankshaft.

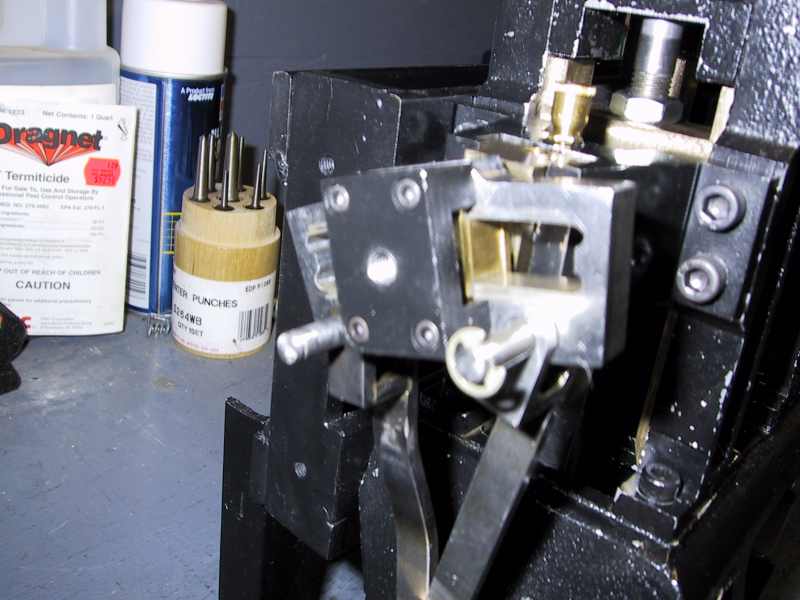

  • The link blades have been mounted to the eccentric straps and fitted to the reversing links.

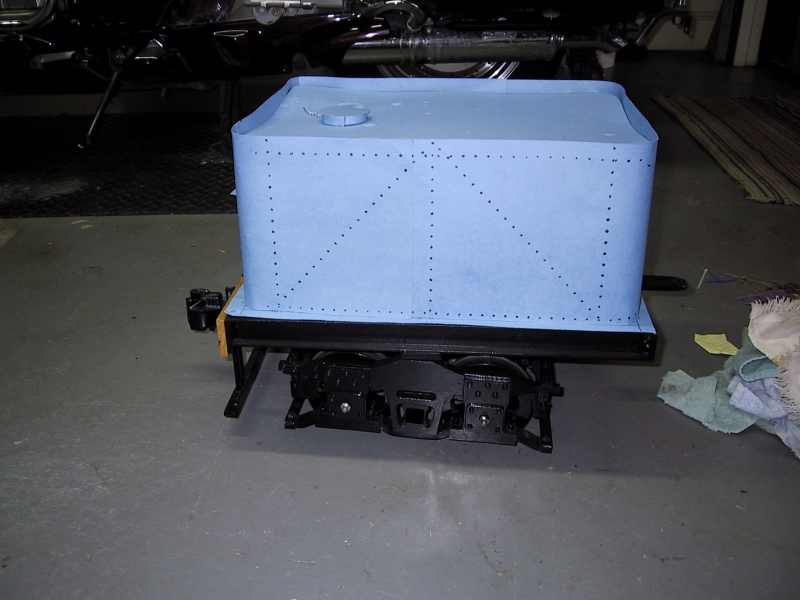

  • A paper model of the tank has been constructed and fit to the tender frame for aesthetic review.
